SPECIFICATIONS

The magnetic encoder has been designed for use as an incremental rotary encoder in multiple applications. When combined with its corresponding motor, it can be used for controlling robotic systems, positioning transport and handling systems, as well as in any application requiring a motor with speed and position control.

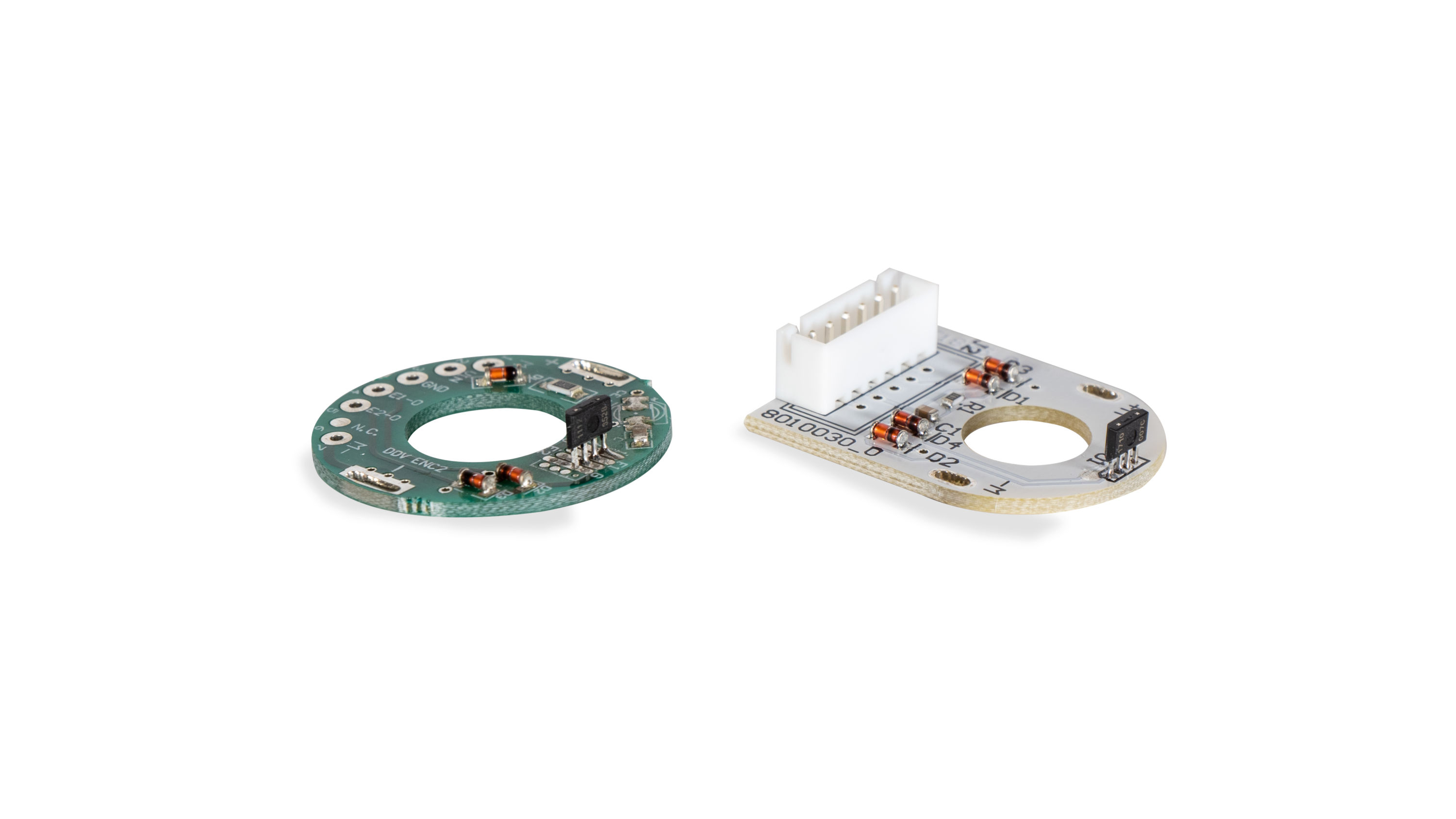

The circuit consists of a dual-channel sensor, sensitive to the polarity generated by the magnet.
The signal can be processed directly by a microcontroller or with converters.
